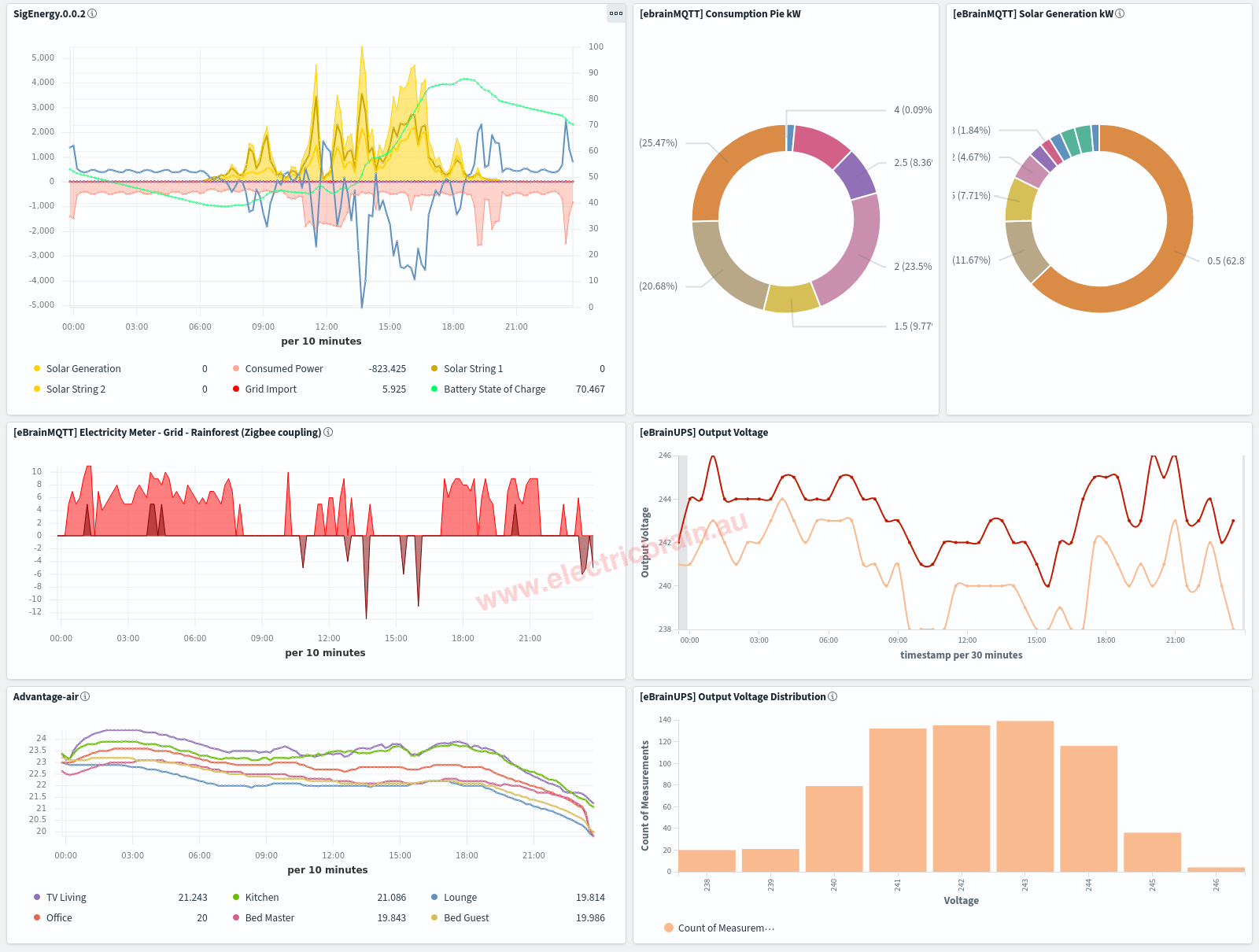

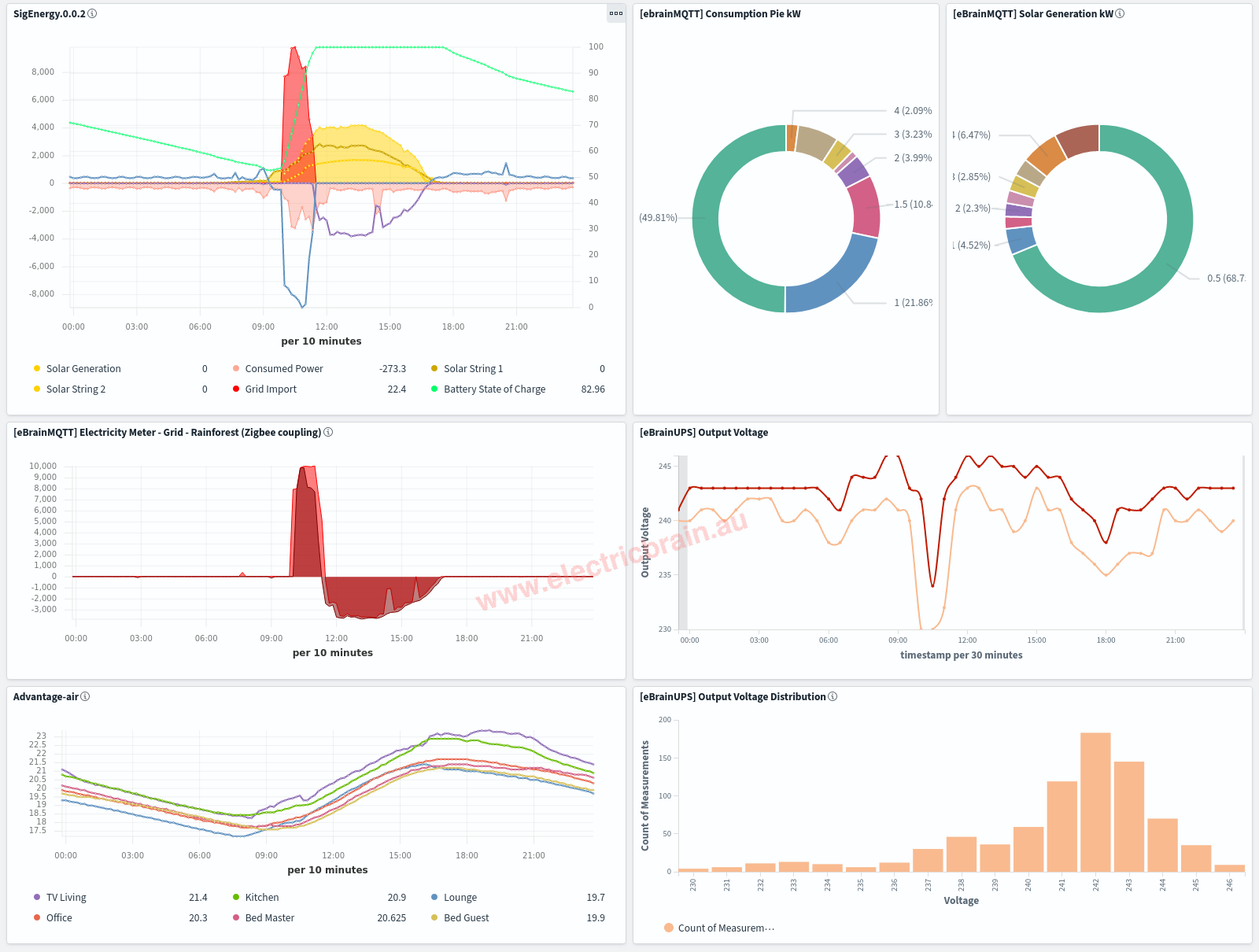

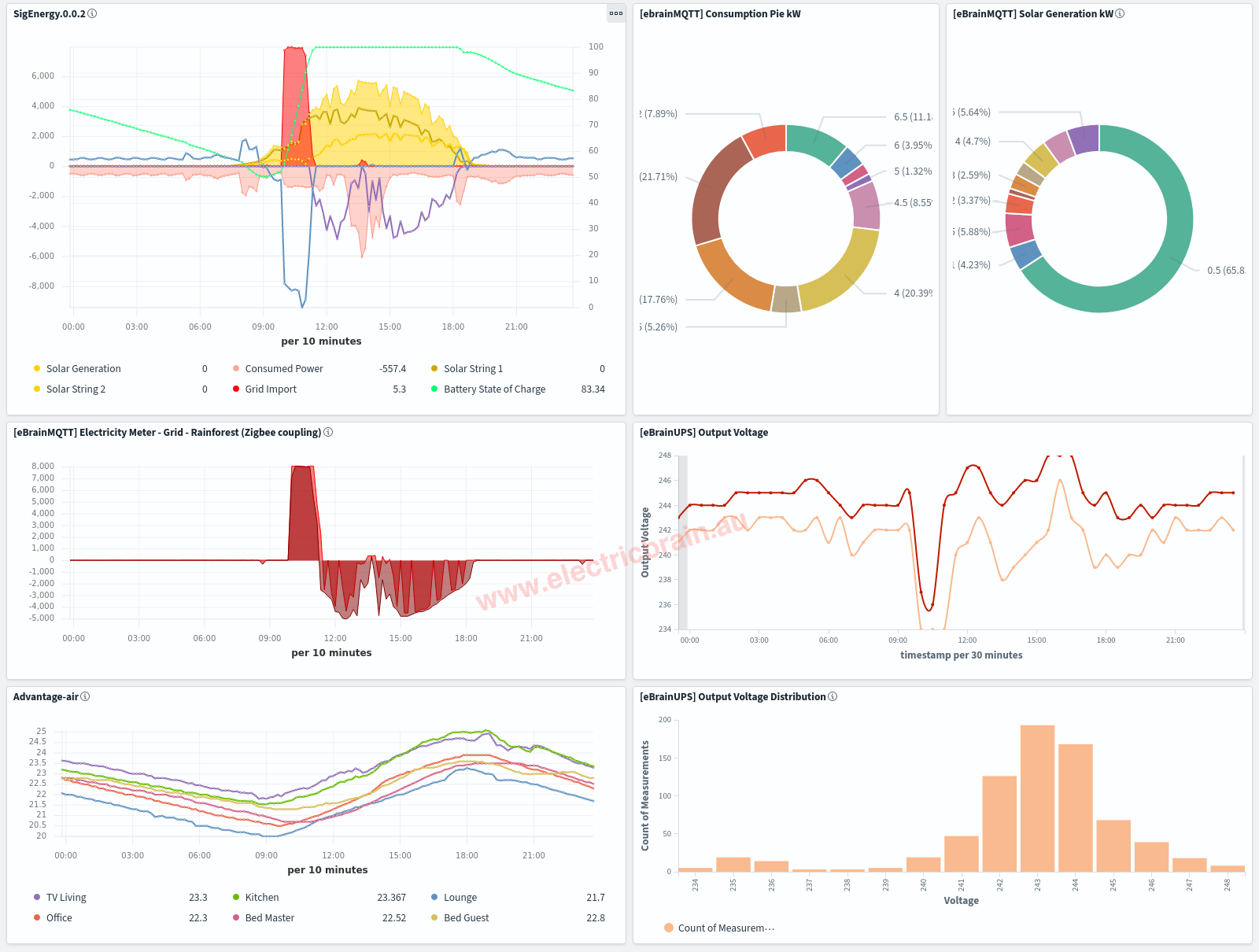

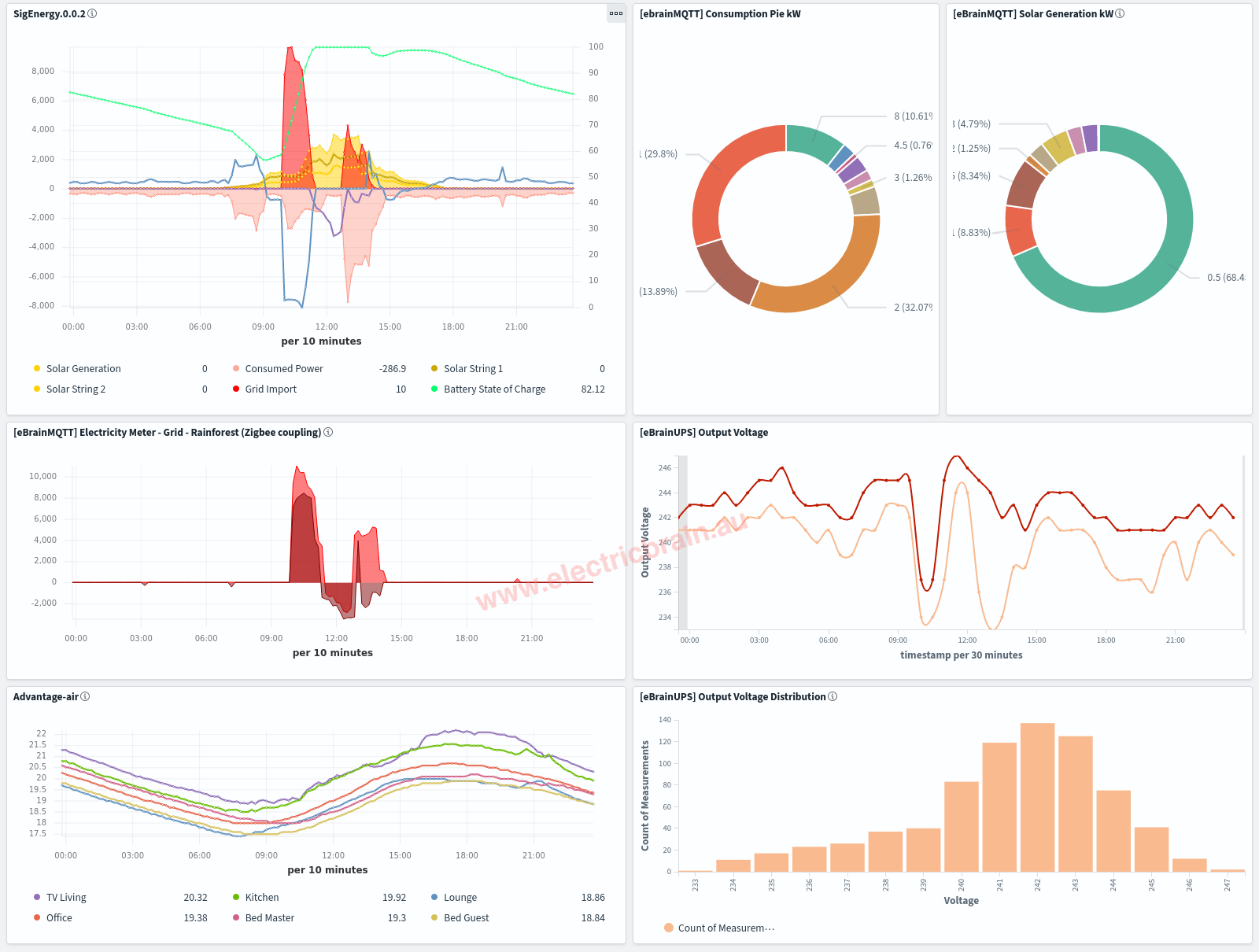

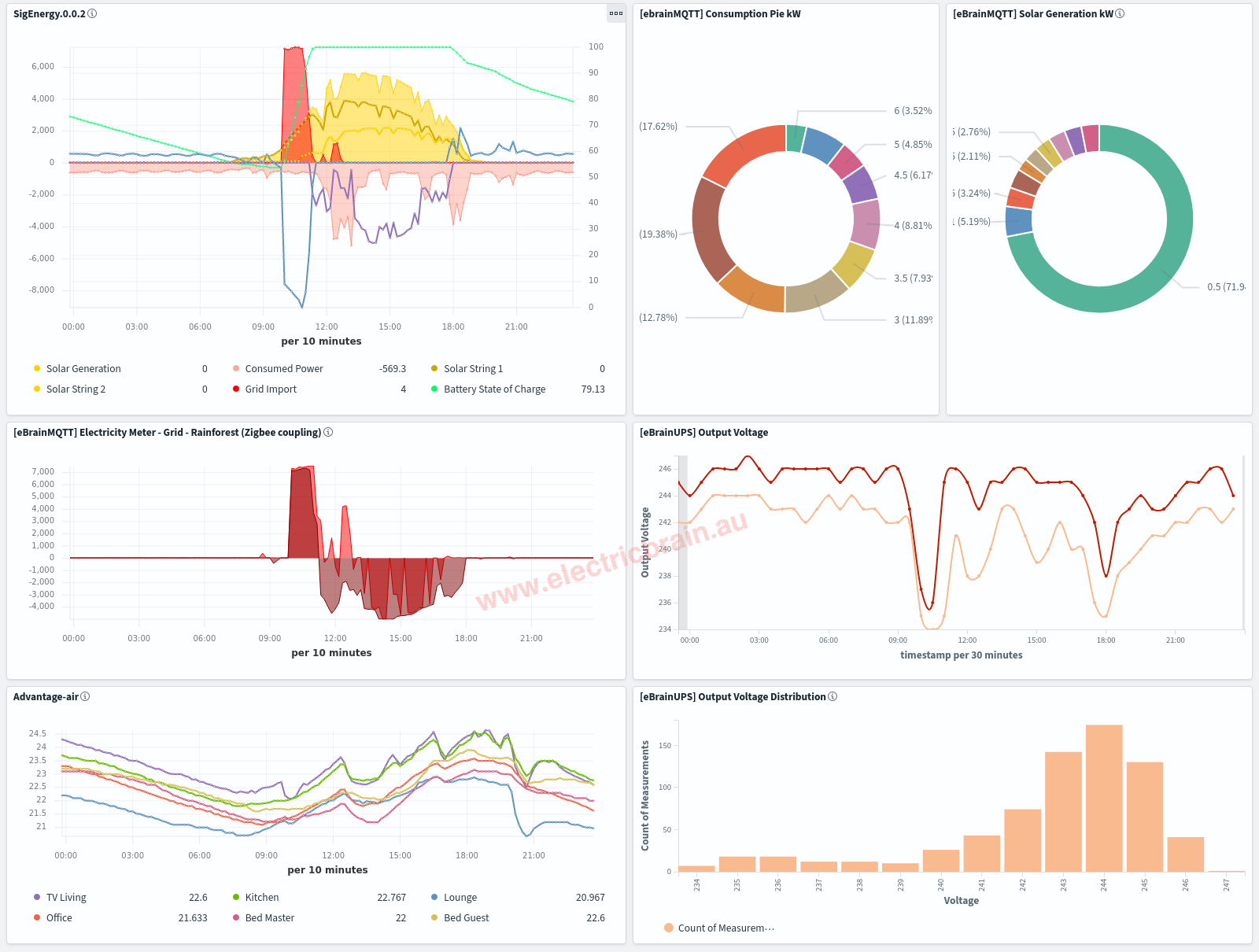

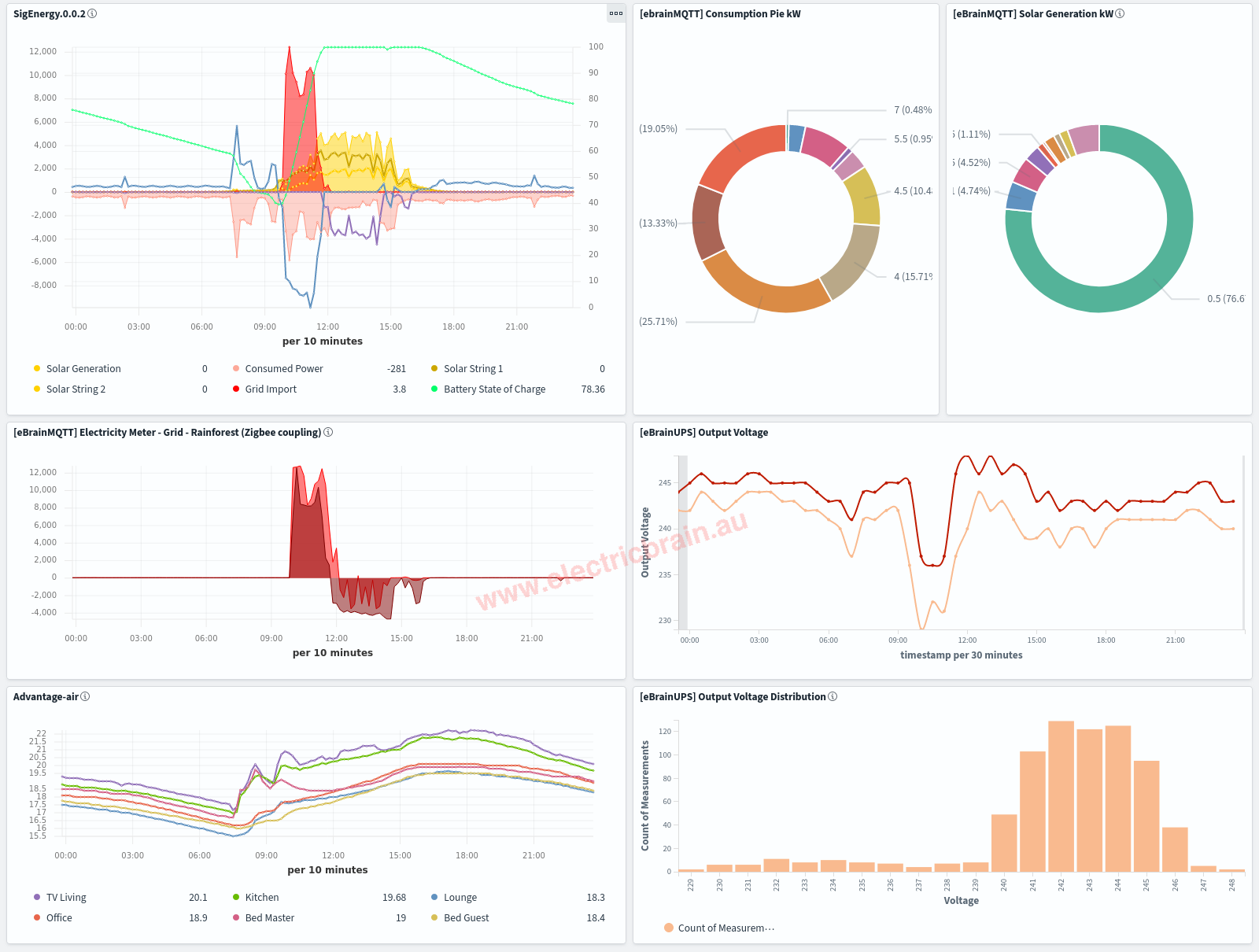

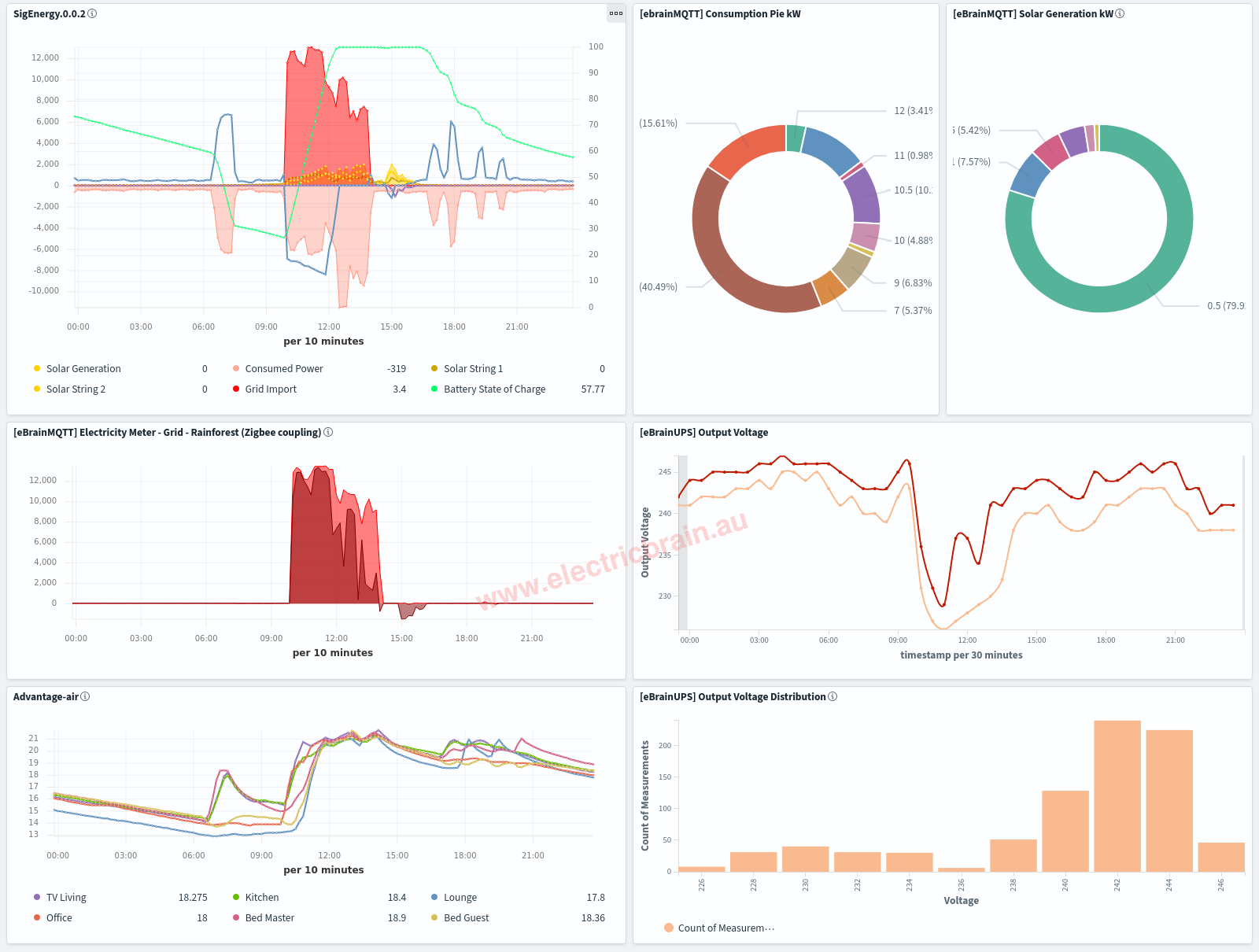

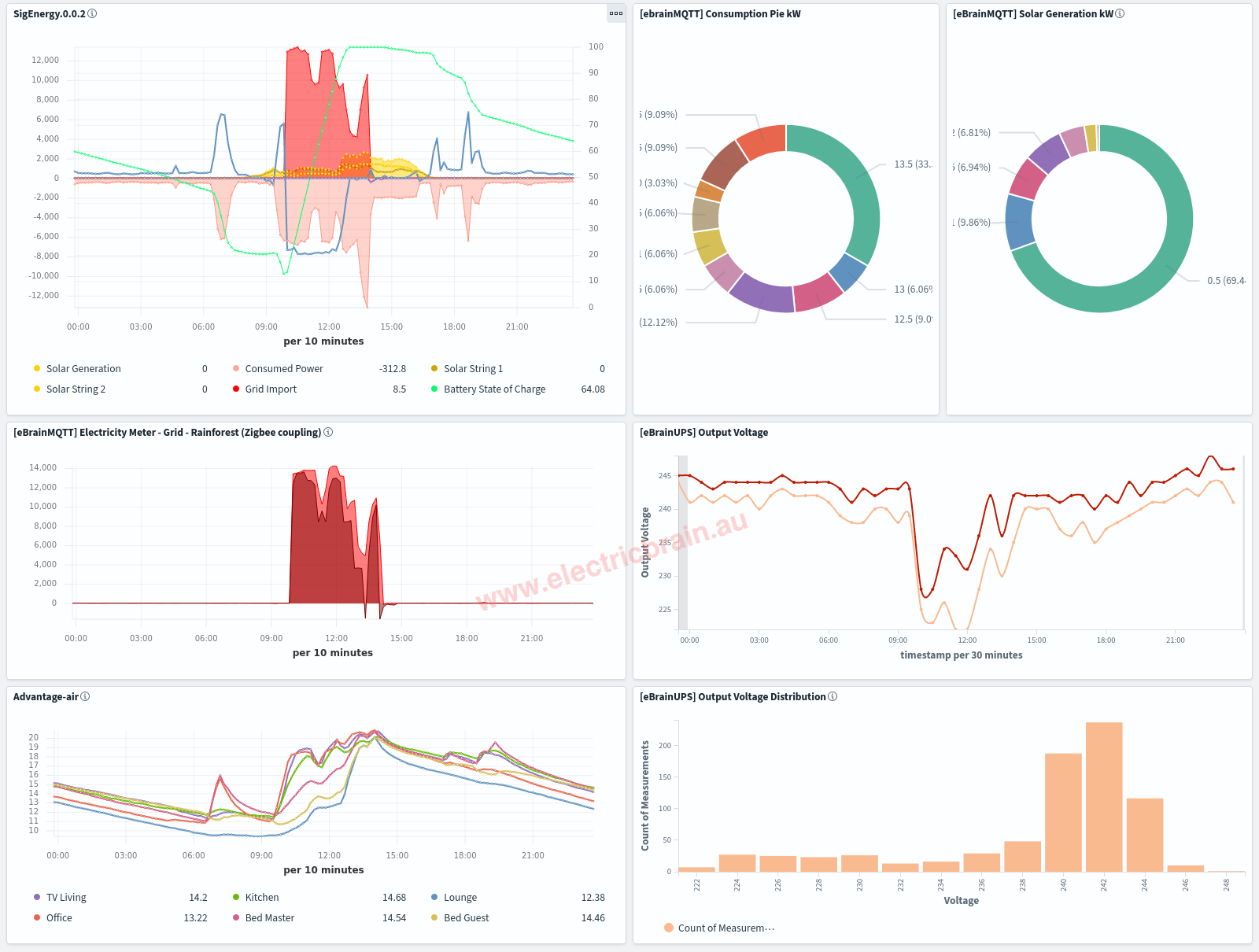

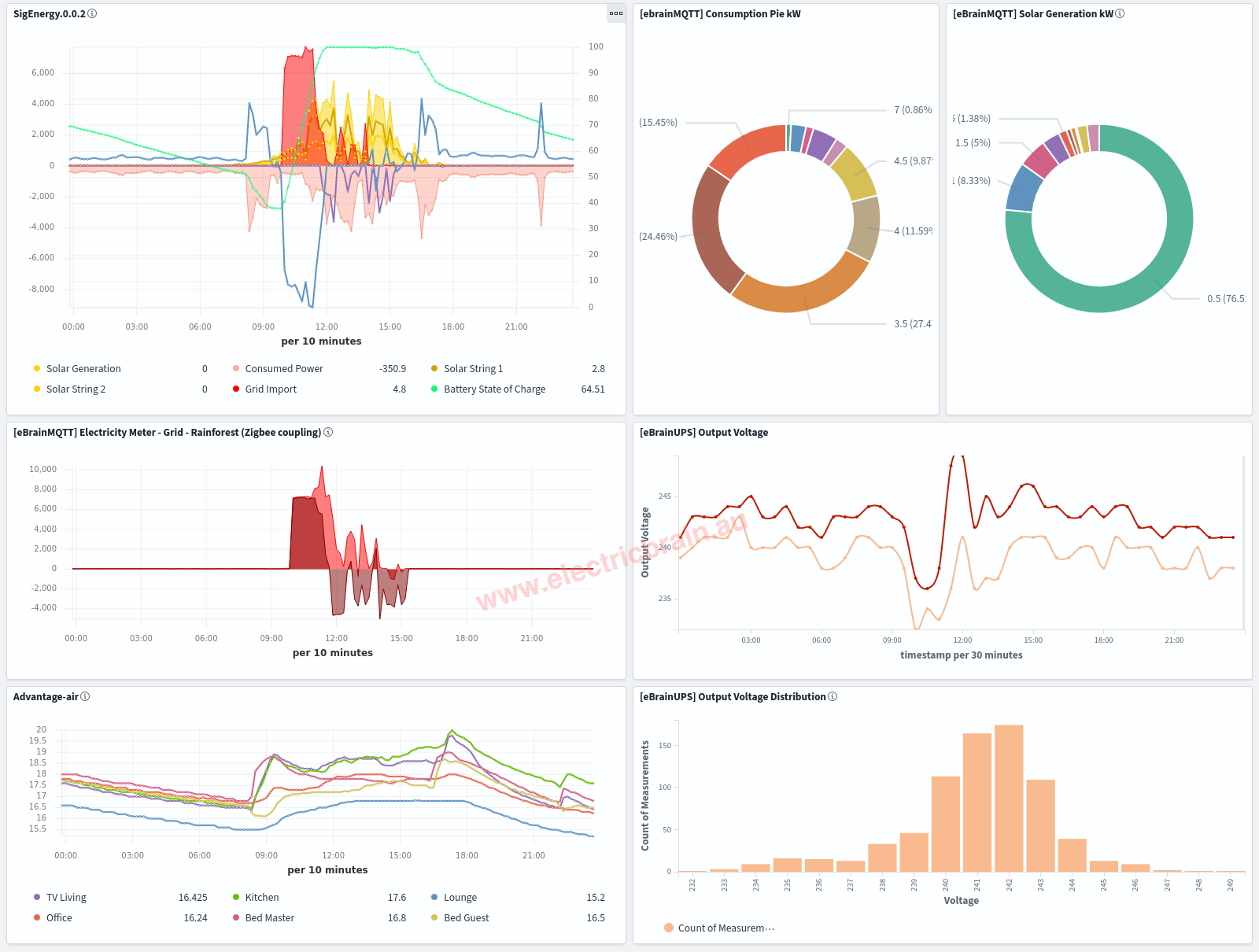

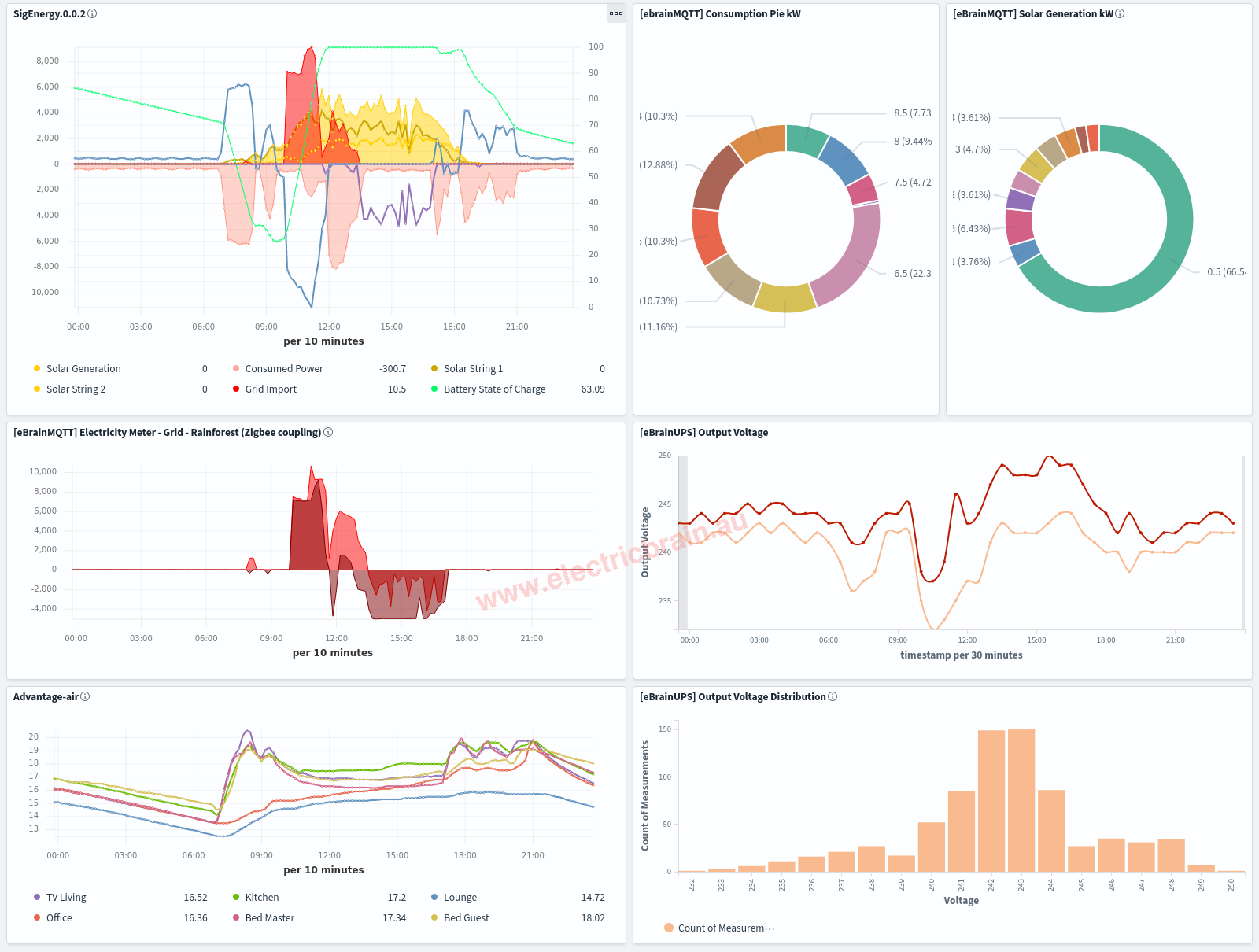

Realtime analytics output

OpenSearch cluster Electricity Analytics

Electricity analytics. A work in progress. Major redevelopment from Fronius/ElasticSearch to Solax/OpenSearch.

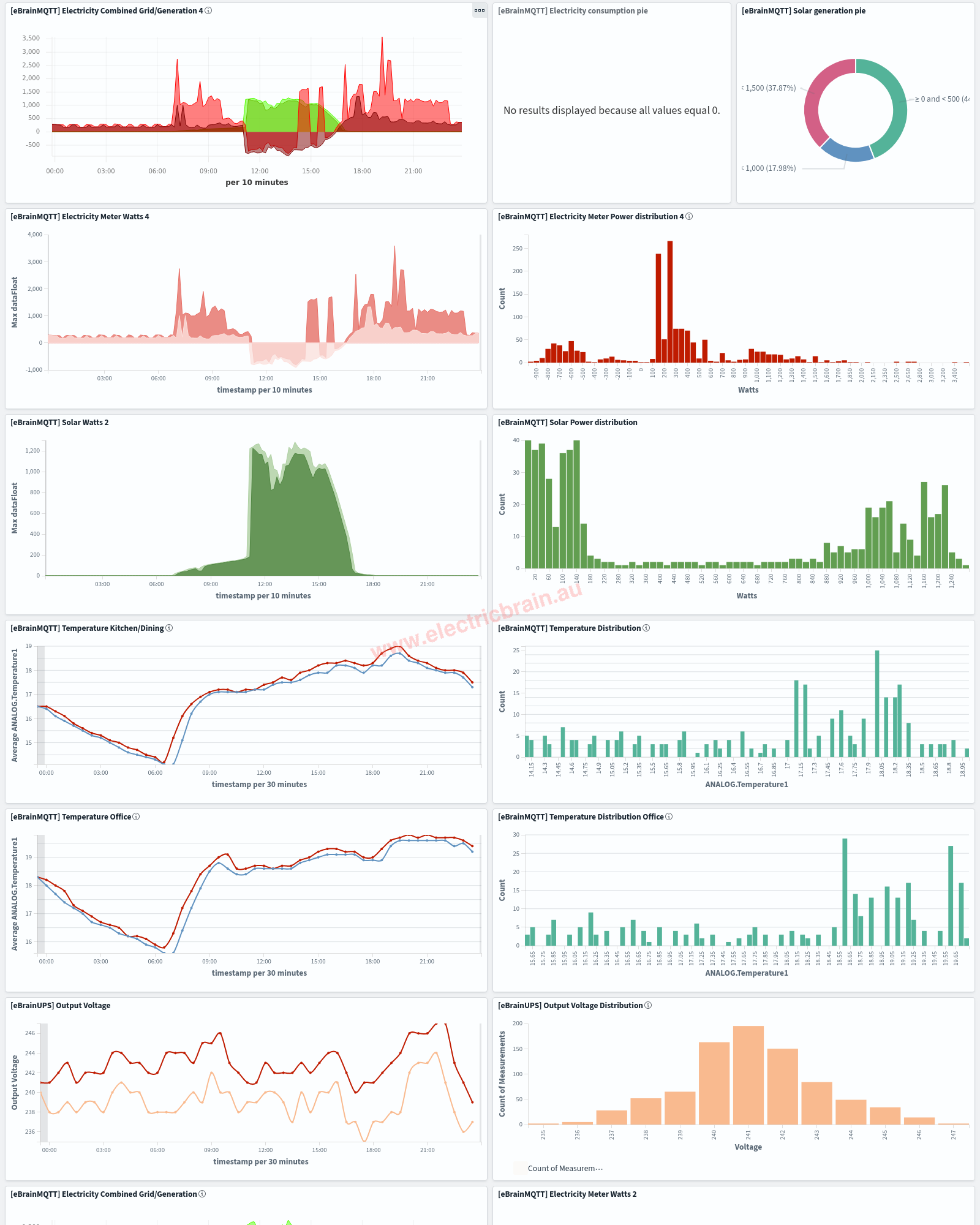

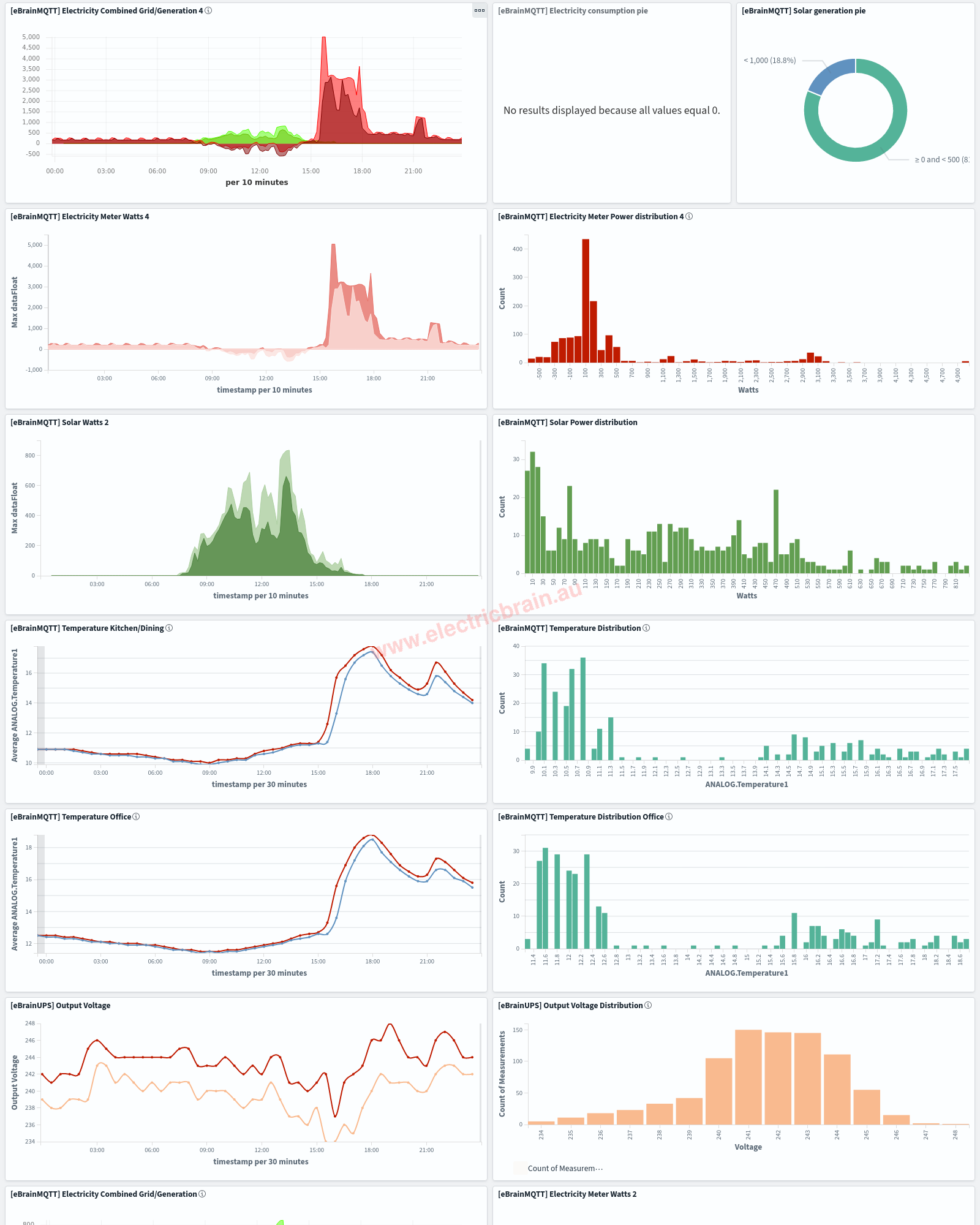

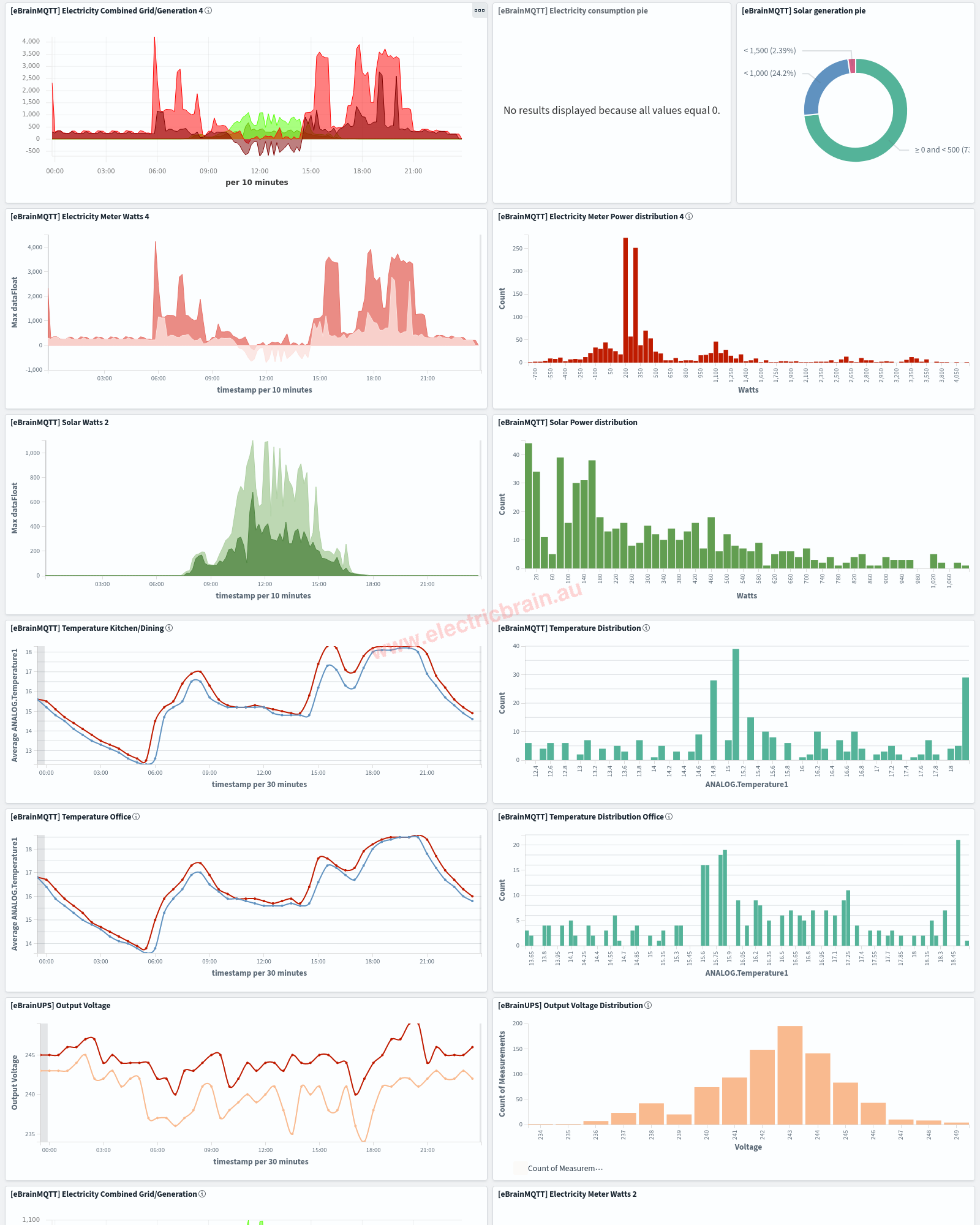

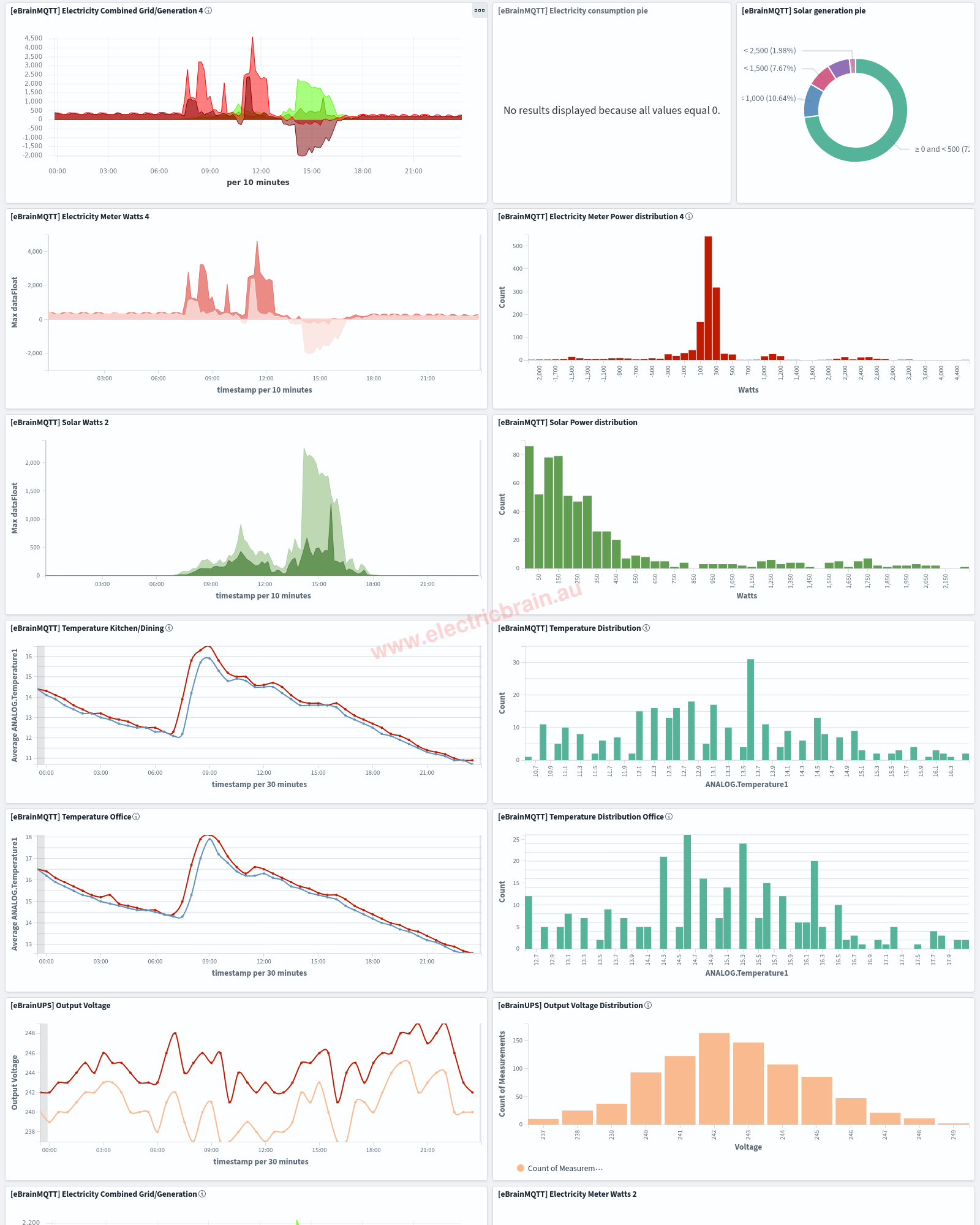

Data sources are the Distributor's electricity meter via the free Emerald EMS and also via the more sophisticated Zigbee Gateway Rainforest Eagle (1st Gen) iCredit as well as the Solax X1 inverter itself. The main difference between the two electricity meter measurements is the flashing LED reading Emerald EMS can't see exported electricity. That means the lower two graphs only show consumption whereas the top graph goes negative (meaning exported electricity is measured).

Generally the green parts of the graph come directly from the Solax inverter. We inherited a bottom of the line Solax X1 system in the new house (which has been fully compromised and is providing data, via a Raspberry Pi Zero W, directly to the MQTT server - no more Chinese cloud servers are involved). The entire inverter now looks like another IoT device as far as OpenHAB and the analytics are concerned (a page on this is yet to come - suffice to say that the Solax inverters are now so common that everything has been hacked and is publically available on the web - all of which sounds bad, however this project wouldn't possible without said hacks. As it turns out this has actually become a reason to buy Solax). What is also revealed by the new analytics is that the Solax actually performs quite well given we have such a poor quality installation job.
